CYLINDER CUTAWAYS

DAC-CM

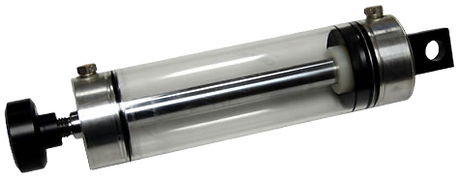

Double-Acting Cylinder Cutaway

With a clear acrylic cylinder barrel, this model exposes the piston, rod, and sealed chamber areas so students can see how a cylinder creates force and motion. Breathers on the ports allow smooth manual movement, making it easy to demonstrate extension, retraction, and area-based force differences. A perfect introductory cylinder teaching tool.
