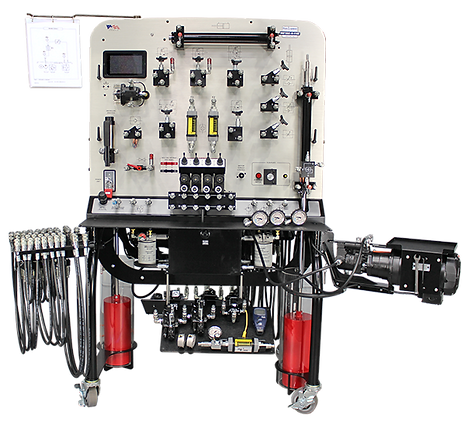

MF102-H — Key Features & Benefits

Industry-Leading “Foundation Building” Instruction

Activities are engineered so each new lesson reinforces 90% previously taught content and introduces 10% new concepts, dramatically increasing retention.

​

Supports Every Major Pump/System Type

Teach fixed displacement, pressure-compensated, and optional load-sensing systems, all on one trainer.

​

Expansive Circuit-Building Capability

Six directional control valves (industrial + mobile) allow students to construct virtually any industrial or mobile hydraulic circuit found in the field.

​

Exceptional Student Retention

The MF102-H has the highest student retention rate of any hydraulic training system currently available.

Curriculum, Visual Aids & Teaching Materials Included

Comes with textbooks, illustrated student workbooks, instructor manuals, and 80+ hours of PowerPoint-based instruction.

​

Safe, Efficient & Environmentally Friendly

Flat-face quick-connect fittings eliminate oil leakage and reduce slip hazards. Energy-efficient design fits within tight classroom spaces and passes through standard doorways.

​

Plug-and-Play Flex-Plate Expandability

Easily add mobile valves, load-sense modules, proportional valves, steering valves, logic valves, and more, no mounting hardware required.

​

Designed by a Teaching Legend

Developed and refined by Rory S. McLaren over three decades of real classroom teaching.

MF200-H — Specifications

Hydraulic Power

• Axial piston pump, 1.0 GPM, pressure-compensated

• Adjustable pressure compensator & adjustable flow

• 4.5-gallon (17 L) reservoir

• 10-micron spin-on filtration with bypass gauge

Electric Drive

• Single-phase 115V TEFC motor

• 1750 RPM, C-face mount

• Lockout/tagout on/off switch

• Overload protection with manual reset

Directional Control Valves (7 total)

• D03 tandem-center, solenoid-controlled w/ flow control

• D03 closed-center, solenoid-controlled w/ dual flow controls

• D03 float-center, solenoid-controlled w/ flow control

• Monoblock cylinder-spool valve w/ relief

• Monoblock motor-spool valve w/ relief

• (1) 2-position, 3-way solenoid cartridge valve

Pressure & Flow Controls

• Pilot-operated relief valve

• Direct-acting relief valve

• Sequence valve

• Pressure-reducing valve

• Counterbalance valve

• Needle valve

• Flow control valve

• Pressure-compensated flow control valve (bypass type)

• Check valve

• Pilot-operated check valve w/ manual override

​

Actuators

• Single-rod cylinder, 14″ stroke

• Double-rod cylinder, 14″ stroke w/ load engage/disengage mechanism

• Bi-directional gear-type hydraulic motor (variable torque)

​Instrumentation

​

Panel-mounted touchscreen displays:

• Tachometer

• Ammeter

• Oil & ambient temperature

• Stopwatch

Physical instruments:

• (2) Flow meters: 0–2 GPM

• (3) Pressure gauges: 0–1500 PSI, glycerin-filled

Load System

• 100 lb (45 kg) mechanical load

• Engage/disengage latch

• Fully enclosed transparent safety guard

Hoses & Connections

• Swing-out/stow-away hose caddy

• Per side:

  • (4) × 60″ hoses

  • (8) × 46″ hoses

  • (6) × 26″ hoses

• SAE 100-R1 hoses with flat-face quick-connects

• (8) T-fittings per side

• Pressure/leak test pump with quick-connect

imensions & Shipping

• Footprint: 30″ D × 48″ W × 77″ H

• Single station weight: 750 lbs

• Double station weight: 900 lbs

• Shipping dimensions: 84″ × 54″ × 42″
